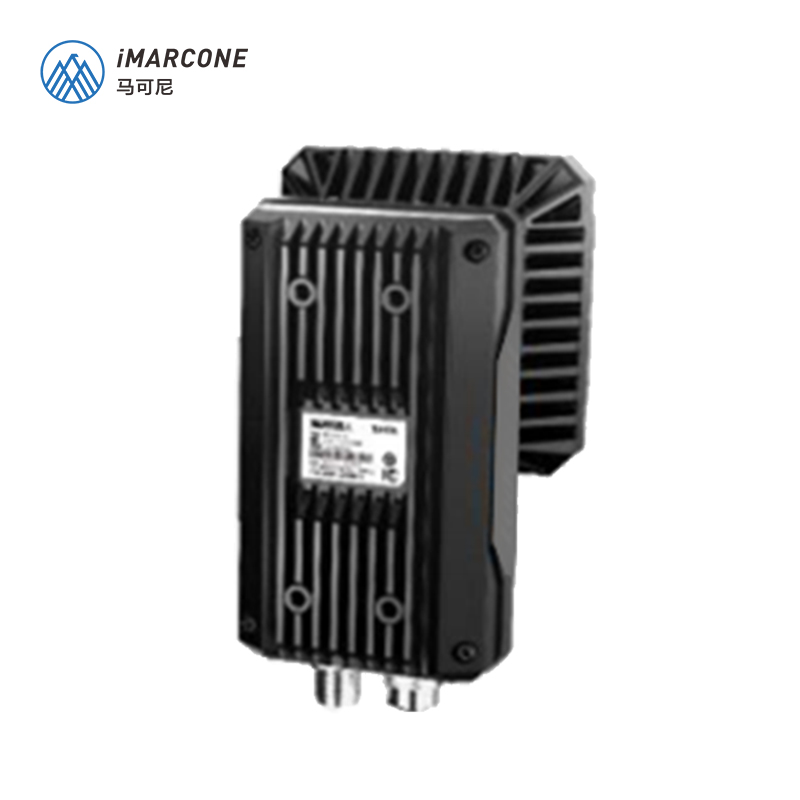

DP-8560 6MP Smart Reading, Built for Complex Industrial Codes
Item No :
DP-8560Order(MOQ) :
1Payment :
T/TProduct Origin :
ChinaColor :
BlackShipping Port :
GuangZhou/ShenZhenLead Time :
7-15 working daysWeight :
400-560gFeatures
| Model Parameter |
DP-8560M-**S-WBN | DP-8560M-00C-WBN | DP-8560M-00C-NNN | ||||||||||||||
| 6 MP Smart Code Reader | |||||||||||||||||
| Performance | |||||||||||||||||
| Symbologies | 1-dimensional codes: Code 39, Code 93, Code 128, CodaBar, EAN 8, EAN 13, UPCA, UPCE, ITF 14, ITF 25, Matrix 25, MSI, China Post, Code 11 |
||||||||||||||||
| 2-dimensional codes: QR Code, Data Matrix | |||||||||||||||||
| Stack codes: PDF 417 | |||||||||||||||||
| Max. frame rate | 30 fps | ||||||||||||||||
| Max. reading speed | 90 codes/sec | ||||||||||||||||
| Sensor type | CMOS, rolling shutter | ||||||||||||||||
| Pixel size | 2.4 µm × 2.4 µm | ||||||||||||||||
| Sensor size | 1/1.8" | ||||||||||||||||
| Resolution | 3072 × 2048 | ||||||||||||||||
| Exposure time | 16 μs to 1 sec | ||||||||||||||||
| Gain | 0 dB to 40 dB | ||||||||||||||||
| Mono/color | Mono | ||||||||||||||||
| Communication protocol |
SmartSDK, TCP Client, Serial, FTP, TCP Server, Profinet, Ethernet/IP, MELSEC, Fins, ModBus, SLMP | ||||||||||||||||
| Electrical feature | |||||||||||||||||
| Data interface | Gigabit Ethernet (1000 Mbit/s) | ||||||||||||||||
| Digital I/O | 12-pin M12 connector provides power and I/O, including opto-isolated input (LineIn 0/1/2) × 3, opto- isolated output (LineOut 3/4/5) × 3, RS-232 input × 1, and RS-232 output × 1. |
||||||||||||||||
| Power supply | 24 VDC | ||||||||||||||||
| Max. power consumption |
20 W @ 24 VDC (light source is enabled) | ||||||||||||||||
| Mechanical | |||||||||||||||||
| Focal length | 8 mm/12 mm/16 mm/25 mm (0.3"/0.5"/0.6"/1.0") |
-- | |||||||||||||||
| Lens mount | M12-mount, mechanical autofocus lens |
C-mount | |||||||||||||||
| Lens cap | Transparent lens cap. Polarization lens cap is optional. |
Transparent lens cap. | |||||||||||||||
| Light source | White light. Red, blue, or infrared light is optional. | Light source is not included. | |||||||||||||||
| Indicator | Power indicator (PWR), network indicator (LNK/ACT), and user-defined indicator (U1/U2). | ||||||||||||||||
| Dimension | 118.7 mm × 78 mm × 73.2 mm (4.7" × 3.1" × 2.9") |
118.7 mm × 78 mm × 92.7 mm (4.7" × 3.1" × 3.7") |
109.5 mm × 64.4 mm × 109 mm (4.3" × 2.5" × 4.3") |
||||||||||||||
| Weight | Approx. 520 g (1.1 lb.) | Approx. 560 g (1.2 lb.) | Approx. 400 g (0.9 lb.) | ||||||||||||||
| Ingress protection | IP67 (under proper installation of waterproof lens cap) | ||||||||||||||||
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F) |
||||||||||||||||
| Humidity | 20% RH to 95% RH (non-condensation) | ||||||||||||||||
| General | |||||||||||||||||
| Client software | IDMVS | ||||||||||||||||
| Certification | CE, RoHS, KC | ||||||||||||||||
