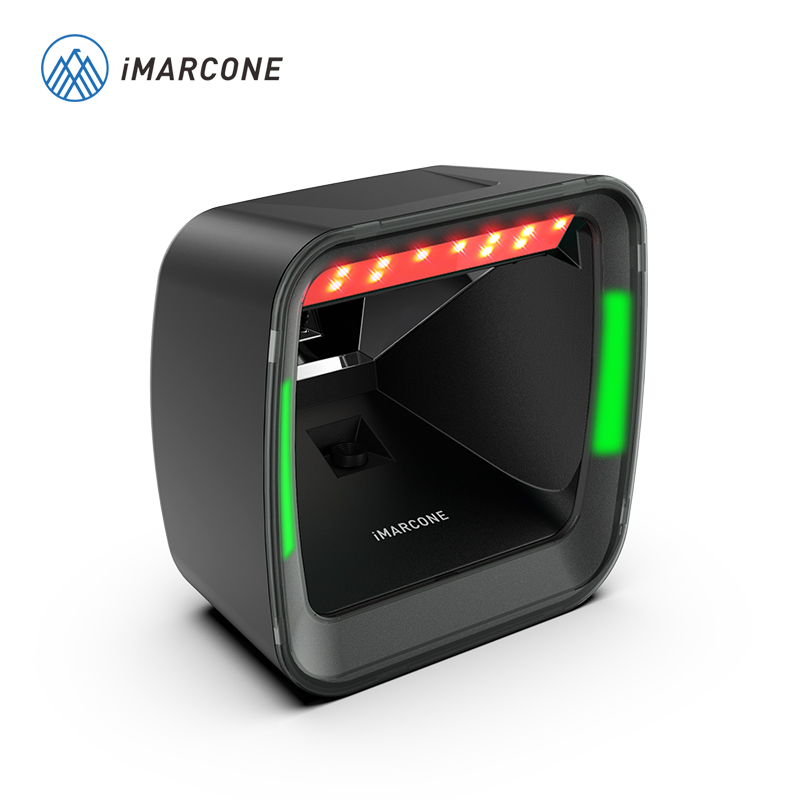

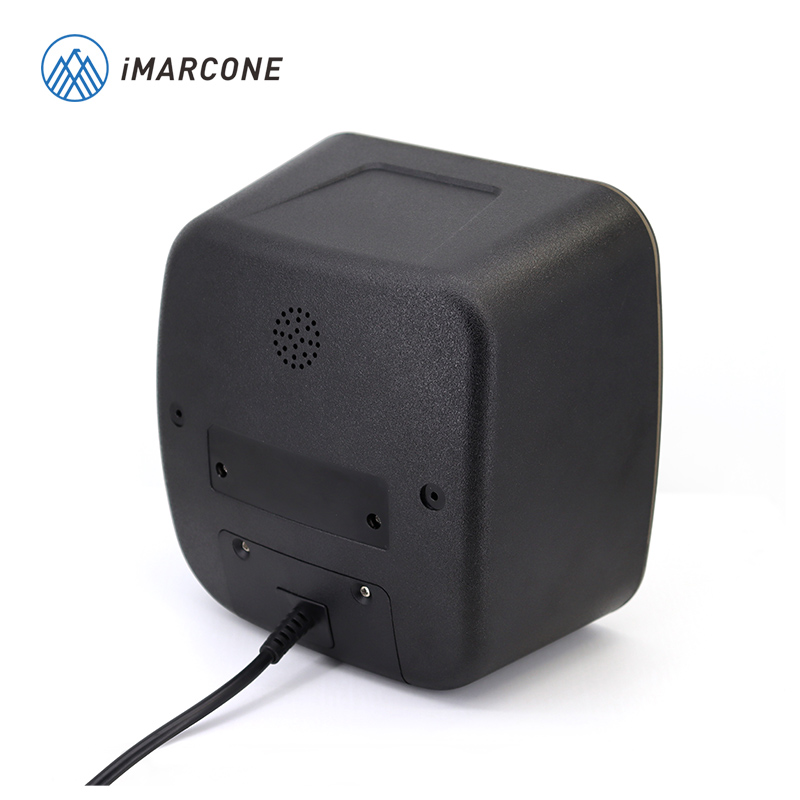

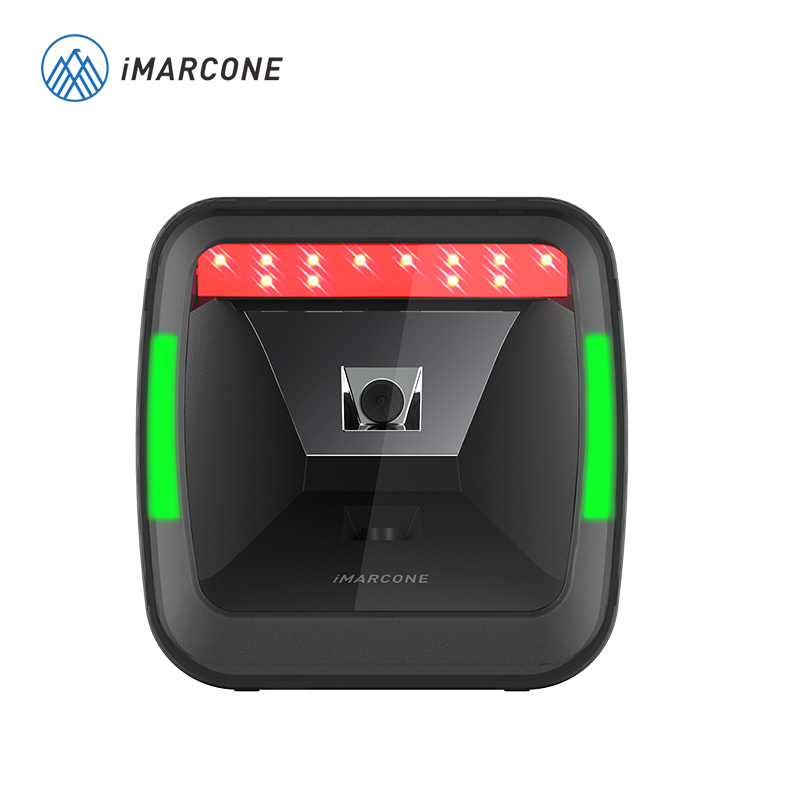

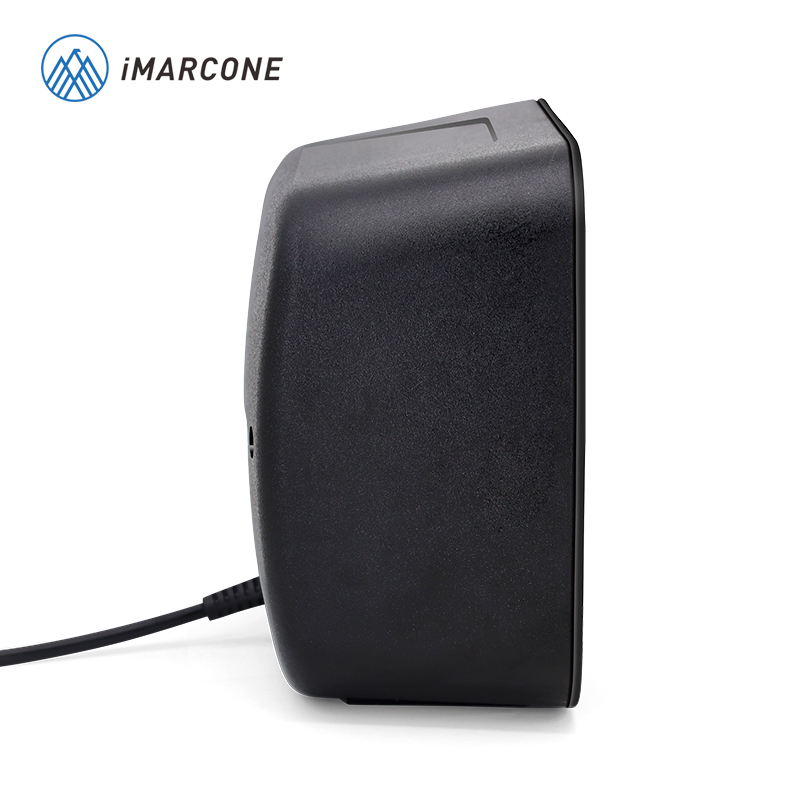

2D CMOS Image Desktop Barcode Scanner Omnidirectional Barcode Scanner Manufacturer
2D CMOS Decoding Algorithm Megapixel Lens Desktop Barcode Scanner for Supermarket 1D 2D Codes EXW Price Barcode Scanner Factory
Item No :
MC-9510Order(MOQ) :
200pcsPayment :
T/TProduct Origin :
GuangzhouColor :
BlackShipping Port :
Guangzhou/ShenzhenLead Time :
7-10 Working DaysWeight :
648gHigh-Performance Scanning
• Equipped with a CMOS sensor and advanced decoding algorithm for fast, accurate reading of all 1D and 2D barcodes.
• Megapixel resolution ensures ultra-fast scanning, even for high-density or damaged barcodes.
Wide-Angle Scanning for Maximum Efficiency
• Widescreen design with a large scanning window—easily capture barcodes from any angle without precise alignment.
• Multi-code scanning—reads multiple barcodes simultaneously (e.g., two or more pharmacy labels at once).
Smart & User-Friendly Operation
• Auto-sensing technology—automatically detects and scans barcodes without manual triggering.
• Instant feedback—built-in LED light and buzzer confirm successful scans for seamless workflow.
Sturdy & Adjustable Design
• Optional metal base provides stability and durability for heavy-duty use.
• Versatile placement—ideal for supermarket, shopping mall, pharmacy, retails shop, etc.
Model Spec. |
MC-9510 |
|
|
2D Desktop Barcode Scanner |
|
Performance Parameter |
||
Light Source |
RED LED illumination light |
|
Resolution |
1280*800 |
|
|
COMS |
|
Decoding Ability |
1D: code128, code39, code39 Full Ascii, code93, code11, code32, codebar, UPCA, UPCE, EAN8, EAN13, Interleaved 2 of 5, Matrix 2 of 5, Airline 2 of 5, Straight 2 of 5, Industrial 2 of 5, Hong Kong 2 of 5(China Post), GS1 DataBar Expanded,GS1 DataBar Limited,GS1 DataBarOmnidirectional, Pharmacode, Composite, MSI, Telepen. 2D: QR Code, Data Matrix, PDF417 ,Micro QR, Micro PDF417, Maxicode, Aztec, HanXin. |
|
Depth of field |
30-220mm (EAN13,13mil) |
|
Precision |
≥4mil |
|
Scanning mode |
Automatic Scanning |
|
Scanning speed |
6fps max |
|
Printing contrast |
≥20% |
|
Error |
1/5million |
|
Scanning angle |
Elevation±60°,Rotation 360°,Yaw±60° |
|
Prompt method |
Buzzer, LED |
|
Interface |
USB, RS232, USB-COM |
|
Physical Parameter |
||
Dimension |
159*159*97mm |
|
Material |
ABS+PC |
|
Cable |
2M |
|
Environmental Parameter |
||
Working temperature |
-20℃ - 55℃ |
|
Storage temperature |
-20℃-60℃ |
|
Humidity |
5% - 95% RH (No condensation) |
|
Shock Resistance |
Passed 1.5 meters drop test |
|
Ambient Light immunity |
0-100000LUX |
|
Electronical Parameter |
||
Voltage |
DC5V±5% |
|
Current |
240MA |
FAQ
--------------------------------------------------------------------------------------------------
1. Can you provide samples?
Yes, of course, but it is not free.
2. How about the delivery time?
Normally, it will take 7 to 15 working days. It also depends on the product and quantity.
3. Can the product be customized, modified and developed?
Yes, we provide OEM&ODM service and can customize products according to drawings.
4. Is the price reasonable?
In cooperation with factories, we promise to provide reasonable and cost-effective prices.
5. How about the payment terms?
Payment terms: T/T, Western Union and L/C, etc.
6. What is the minimum order quantity?
No MOQ.
