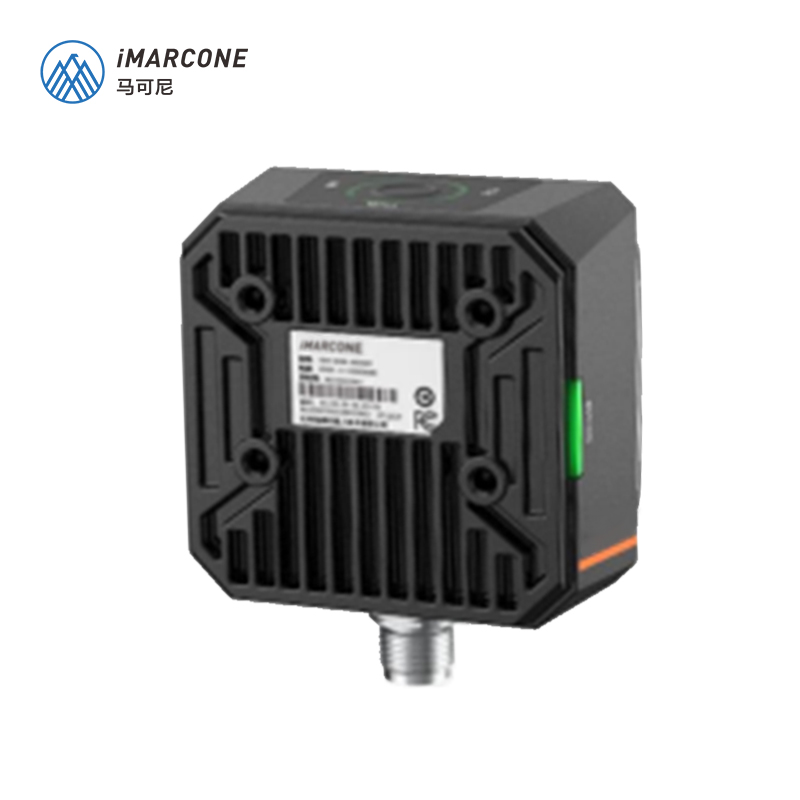

Deep Learning Fixed-Mount Code Reader for Challenging DPM and Low-Contrast Codes
Item No :
DP-8316PMOrder(MOQ) :
1Payment :
T/TProduct Origin :
ChinaColor :
BlackShipping Port :
GuangZhou/ShenZhenLead Time :
7-15 working daysWeight :
280gFeatures
| Model | DP-8316PM-06M-WBN | DP-8316PM-12M-WBN | DP-8316PM-15M-WBN | |||||||||||
| Performance | ||||||||||||||
| Symbologies | 1D codes: Code 39, Code 93, Code 128, CodaBar, EAN 8, EAN 13, UPCA, UPCE, ITF 14, ITF 25, Matrix 25, MSI, China Post, Code 11, Industrial 25, and Pharmacode 2D matrix codes: QR Code (GS1-QR included), Data Matrix (GS1-DM included), MicroQR, AZTEC, HanXin, Maxi code Stacked codes: PDF417, MicroPDF417 |
|||||||||||||
| Max. frame rate | 60 fps | |||||||||||||
| Max. reading speed | 84 codes/sec | |||||||||||||
| Sensor type | Global shutter, mono, 1/2.9", 3.45 µm × 3.45 µm | |||||||||||||
| Resolution | 1408 × 1200 | |||||||||||||
| Exposure time | 16 μs to 1 sec | |||||||||||||
| Gain | 0 dB to 45 dB | |||||||||||||
| Electrical feature | ||||||||||||||
| Data interface | Fast Ethernet (100 Mbit/s) | |||||||||||||
| Communication protocol |
SmartSDK, TCP Client, TCP Server, Serial, FTP, Profinet, Ethernet/IP, MELSEC/SLMP, ModBus, UDP, Fins, Modbus RTU, KV |
|||||||||||||
| Digital I/O | V3.0: 17-pin M12 connector provides power and I/O, including isolated input (LineIn 0/1/2) × 3, isolated output (LineOut 3/4/5) × 3, RS-232 × 1. Supports device triggering via pressing button on top. V2.0: 17-pin M12 connector provides power and I/O, including non-isolated input (LineIn 0/1/2) × 3, non-isolated output (LineOut 3/4/5) × 3, RS-232 × 1. Supports device triggering via pressing button on top. |
|||||||||||||
| Power supply | 24 VDC | |||||||||||||
| Power consumption | Avg.: 9 W @ 24 VDC (light source enabled) Max.: 48 W @ 24 VDC (light source enabled) |
|||||||||||||
| Mechanical | ||||||||||||||
| Focal length | 6 mm | 12 mm | 15 mm | |||||||||||
| Field of view | 44° (H) × 32° (V) | 22° (H) × 16° (V) | 18° (H) × 13° (V) | |||||||||||
| Lens mount | M12-mount, mechanical focus supported | |||||||||||||
| Lens cap | Transparent lens cap by default. Fully-polarized lens cap is optional. | |||||||||||||
| Light source | White light by default. Red/blue/IR light is optional. | |||||||||||||
| Indicator | Power indicator (PWR), network indicator (LNK), status indicator (STS), result indicator (OK/NG) | |||||||||||||
| Shell material | ADC12 | |||||||||||||
| Dimension | 65.2 mm × 65.2 mm × 47 mm (2.6" × 2.6" × 1.9") | |||||||||||||
| Weight | Approx. 280 g (0.6 lb.) | |||||||||||||
| Ingress protection | IP67 (under proper installation of waterproof lens cap) | |||||||||||||
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F) |
|||||||||||||
| Humidity | 20% RH to 95% RH (no condensation) | |||||||||||||
| Vibration resistance | Device only: 10 Hz to 55 Hz, 1.5 mm full amplitude, 2 hours per axis (X/Y/Z) (IEC 60068-2- 6:2007\GB/T 2423.10-2019) |
|||||||||||||
| Shock resistance | Device only, 30 g / 11 ms, half-sine wave, 500 shocks per axis (6 directions) (IEC 60068-2-27\GB/T 2423.5-2019) |
|||||||||||||
| General | ||||||||||||||
| Client software | IDMVS | |||||||||||||
| Certification | CE, RoHS, KC | |||||||||||||
Your Industrial Barcode Scanner for Every System
Read More
Deep Learning Fixed-Mount Code Reader for Challenging DPM and Low-Contrast Codes
Read More
Industrial Barcode Scanner for Challenging Environments
Read More

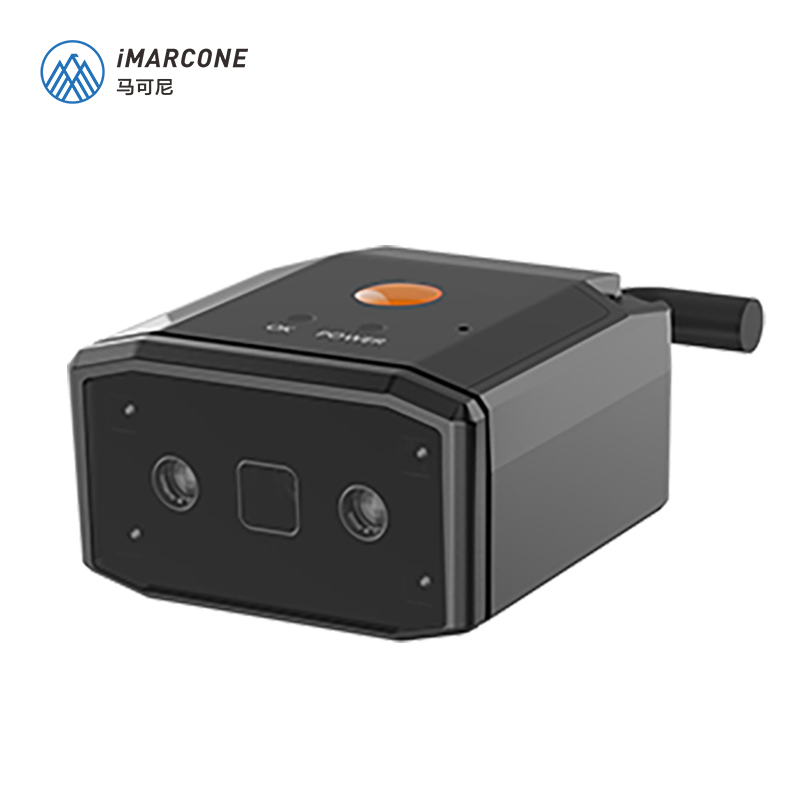

Industrial Smart Fixed-Mount Code Reader For Low-Speed / Static Production Line Stations
