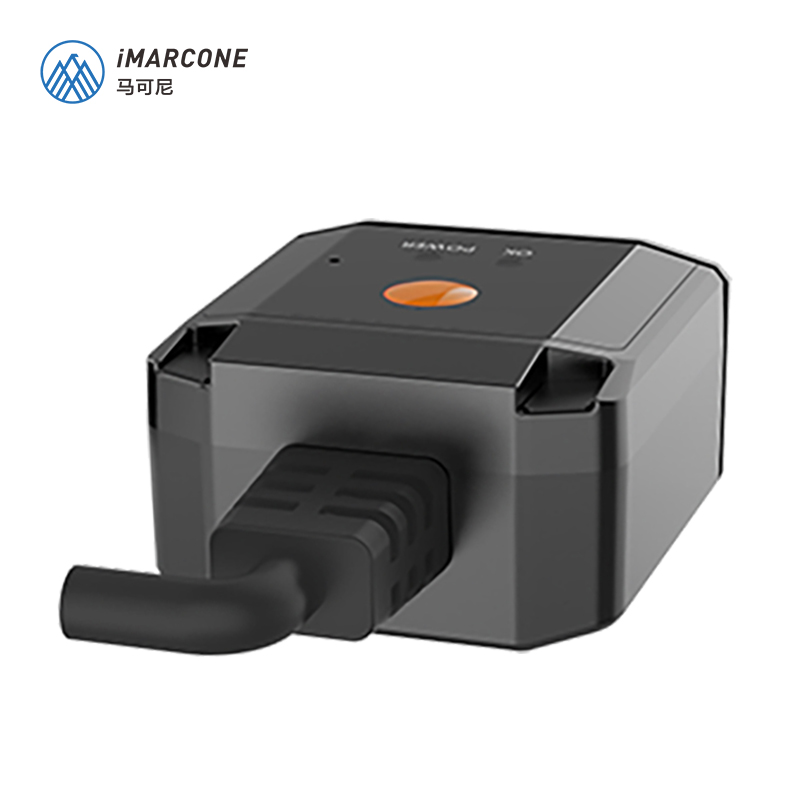

Industrial Smart Fixed-Mount Code Reader DP-8013

Industrial Smart Fixed-Mount Code Reader For Low-Speed / Static Production Line Stations

Item No :
DP-8013
Order(MOQ) :
1
Payment :
T/T
Product Origin :
China
Color :
Black
Shipping Port :
GuangZhou/ShenZhen
Lead Time :
7-15 working days
Weight :
68.5g

Inquire Now

Product categories

Commercial Product

New products

Product Details

Features

 Compact design and small in size.

 Adopts multiple I/O interfaces and plug-in power interface.

 Adopts LED aiming light to help aim codes.

 Adopts buzzer and indicator for indicating device status.

 Supports one-click parameter adjustment for convenient operation.

 Supports light source control for flexible configuration.

Model

DP-8013-05-
RBN(-U/-S/-SU)

DP-8013-05-
RBP(-U/-S/-SU)

DP-8013-05-
WBN(-U/-S/-SU)

DP-8013-05-
WBP(-U/-S/-SU)

Performance

Symbologies

   1D codes: Code 39, Code 93, Code 128, EAN8, EAN13, ITF 14, ITF 25, CodaBar, UPCA, UPCE
   2D codes: QR Code, Data Matrix, MicroQR, AZTEC, HanXin
   Stacked codes: PDF417

Max. frame rate

50 fps

Max. reading speed

30 codes/sec

Sensor type

CMOS, global shutter, mono, 1/4", 2.7 µm × 2.7 µm

Resolution

1280 × 1024

Exposure time

60 μs to 6000 μs

Gain

1 dB to 28 dB

Depth of field*

Code 39 (5 mil): 75 mm to 215 mm; Code 128 (10 mil): 50 mm to 400 mm
EAN 13 (13 mil): 60 mm to 420 mm; QR Code (15 mil): 40 mm to 290 mm
Data Matrix (10 mil): 50 mm to 240 mm

Electrical feature

Data interface

Network interface: Fast Ethernet (100 Mbit/s), RS-232, DC terminal; USB interface: USB 2.0

Communication
protocol

Network interface: SmartSDK, TCP Client, Serial, FTP, TCP Server, UDP, Profinet, Ethernet/IP
USB interface: SmartSDK, USB (HID, CDC)

Digital I/O

Network interface: DB15 connector provides power and I/O, including opto-isolated input × 2 (Line
0/1), opto-isolated output × 2 (Line 3/4), RS-232 × 1
USB interface: DB15 connector provides data transmission.
Supports device triggering and factory reset via pressing button on side.

Power supply

Network interface: 12 VDC to 24 VDC
USB interface: 5 VDC (Recommended: USB 3.0 provides power supply)

Power consumption

Network interface: avg.: 2.5 W @ 12 VDC to 24 VDC; max.: 5 W @ 12 VDC to 24 VDC
USB interface: avg.: 2.5 W @ 5 VDC; max.: 5 W @ 5 VDC

Mechanical

Focal length

4.63 mm

Focus distance

120 mm

Field of view

40°(H) × 33°(V)

Lens mount

M5.8-mount

Ambient illumination

0 lux to 10000 lux

Light source

Red

Red (polarized)

White

White (polarized)

Aiming system

Green LED

Indicator

Power indicator (POWER), status indicator (OK/NG)

Shell material

PVC

Dimension

45 mm × 43 mm × 25 mm (1.8" × 1.7" × 1.0")

Weight

Approx. 68.5 g (0.2 lb.)

Ingress protection

IP54

Temperature

Working temperature: 0 °C to 50 °C; storage temperature: –30 °C to 70 °C

Humidity

20% RH to 95% RH (no condensation)

Vibration resistance

Device only: 10 Hz to 55 Hz, 1.5 mm full amplitude, 2 hours per axis (X/Y/Z) (IEC 60068-2-
6:2007\GB/T 2423.10-2019)

Shock resistance

Device only, 30 g / 11 ms, half-sine wave, 500 shocks per axis (6 directions) (IEC 60068-2-27\GB/T
2423.5-2019)

General

Client software

IDMVS

Certification

CE, RoHS, KC

Model

DP-8013-05H-

DP-8013-05N-

RBN(-U/-S/-SU)

RBP

RBN(-U/-S/-SU)

RBP

Performance

Symbologies

   1D codes: Code 39, Code 93, Code 128, EAN8, EAN13, ITF 14, ITF 25, CodaBar, UPCA, UPCE
   2D codes: QR Code, Data Matrix, MicroQR, AZTEC, HanXin
   Stacked codes: PDF417

Max. frame rate

50 fps

Max. reading speed

30 codes/sec

Sensor type

CMOS, global shutter, mono, 1/4", 2.7 µm × 2.7 µm

Resolution

1280 × 1024

Exposure time

60 μs to 6000 μs

Gain

1 dB to 28 dB

Depth of field*

Code 39 (3 mil): 35 mm to 65 mm
Code 39 (5 mil): 30 mm to 75 mm
EAN 13 (13 mil): 55 mm to 105 mm
Data Matrix (5 mil): 30 mm to 65 mm
Data Matrix (10 mil): 25 mm to 90 mm
Code 128 (10 mil): 25 mm to 105 mm
QR Code (10 mil): 25 mm to 95 mm

Code 39 (3 mil): 45 mm to 90 mm
Code 39 (5 mil): 35 mm to 105 mm
EAN 13 (13 mil): 50 mm to 125 mm
Data Matrix (5 mil): 40 mm to 80 mm
Data Matrix (10 mil): 25 mm to 125 mm
Code 128 (10 mil): 40 mm to 140 mm
QR Code (10 mil): 30 mm to 120 mm

Electrical feature

Data interface

Network interface: Fast Ethernet (100 Mbit/s), RS-232, DC terminal; USB interface: USB 2.0

Communication
protocol

Network interface: SmartSDK, TCP Client, Serial, FTP, TCP Server, UDP, Profinet, Ethernet/IP
USB interface: SmartSDK, USB (HID, CDC)

Digital I/O

Network interface: DB15 connector provides power and I/O, including opto-isolated input × 2 (Line
0/1), opto-isolated output × 2 (Line 3/4), RS-232 × 1; USB interface: DB15 connector provides data
transmission. Supports device triggering and factory reset via pressing button on side.

Power supply

Network interface: 12 VDC to 24 VDC
USB interface: 5 VDC (Recommended: USB 3.0 provides power supply)

Power consumption

Network interface: avg.: 2.5 W @ 12 VDC to 24 VDC; max.: 5 W @ 12 VDC to 24 VDC
USB interface: avg.: 2.5 W @ 5 VDC; max.: 5 W @ 5 VDC

Mechanical

Focal length

4.63 mm

Focus distance

40 mm

70 mm

Field of view

40°(H) × 33°(V)
