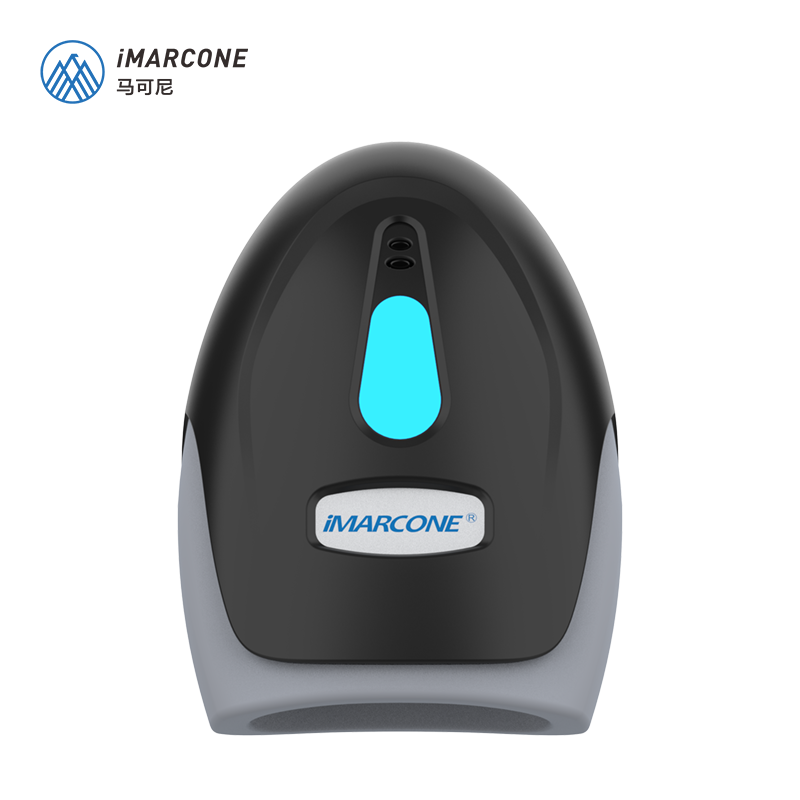

Wired Handheld 2D Barcode Scanner Support Data Matrix QR PDF417 Various 1D 2D Barcode
Item No :
MC-2003Order(MOQ) :
200pcsPayment :
T/TProduct Origin :
ChinaColor :
BlackShipping Port :
Guangzhou/ShenzhenLead Time :
5-15 daysWeight :
180gFeatures:
1. Plug and play. Simple installation with USB port, without installing any software or app. Compatible with computer and POS machines.
2. High Speed Scanning. High sensitivity, super decoding capability and low error rate.
3. Screen Scanning. Adopt new 2D image scanning engine, read quickly and accurately.
4. Shock resistance to fall off. Durable enough to withstand the impact of a free fall of 1-3 meters to concrete floor.
|
iMARCONE Technology Co., Ltd. |
|
|
Model name： MC-2003 |
|
|
Light source type |
Red LED aiming light, white LED illumination light |
|
Decoding ability |
1D: Code128, Code39, Code39, Full Ascii, Code93, Code11, Code32, Codebar, UPCA, UPCE, EAN8, EAN13, Interleaved 2 of 5, Matrix 2 of 5, IATA 2 of 5, Industrial 2 of 5, MSI |
|
2D: QR Code, Data Matrix, PDF417, Micro QR, Micro PDF417, Aztec |
|
|
Scanning type |
CMOS |
|
Resolution |
640*480 |
|
Scanning mode |
Manual mode/Continuous mode/Automatic mode |
|
Scanning angle |
Elevation ± 60 °, Rotation 360 °, Yaw ± 65 ° |
|
Scanning accuracy |
≥4mil |
|
Depth of field |
60-250mm(EAN13, 13mil) |
|
Prompt method |
Buzzer, LED |
|
Printing contrast |
≥20% |
|
Error rate |
1/5 million |
|
Interface |
USB-HID, USB-COM, RS232 |
|
Physical parameters |
|
|
Weight |
180g |
|
Size |
67mm*97mm*165mm |
|
Material quality |
ABS+PC |
|
Cable length |
1.6m |
|
Environmental parameters |
|
|
Working temperature |
-10℃-60℃ |
|
Storage temperature |
-20℃-70℃ |
|
Humidity |
5% - 95% RH (No condensation) |
|
Shock resistance |
Passed 1.5meters drop test |
|
Electrical parameters |
|
|
Voltage |
DC5V±5% |
|
Current |
135mA |
FAQ
--------------------------------------------------------------------------------------------------
1. Can you provide samples?
Yes, of course, but it is not free.
2. How about the delivery time?
Normally,it will take 7 to 15 working days. It also depends on the product and quantity.
3. Can the product be customized, modified and developed?
Yes, we provide OEM&ODM service and can customize products according to drawings.
4. Is the price reasonable?
In cooperation with factories, we promise to provide reasonable and cost-effective prices.
5. How about the payment terms?
Payment terms: T/T, Western Union and L/C, etc.
6. What is the minimum order quantity?
No MOQ.
